5mm LDR Light Sensor 3 Pin Module LM393

5mm LDR Photoresistor 3 Pin LM393 Light Sensor Module

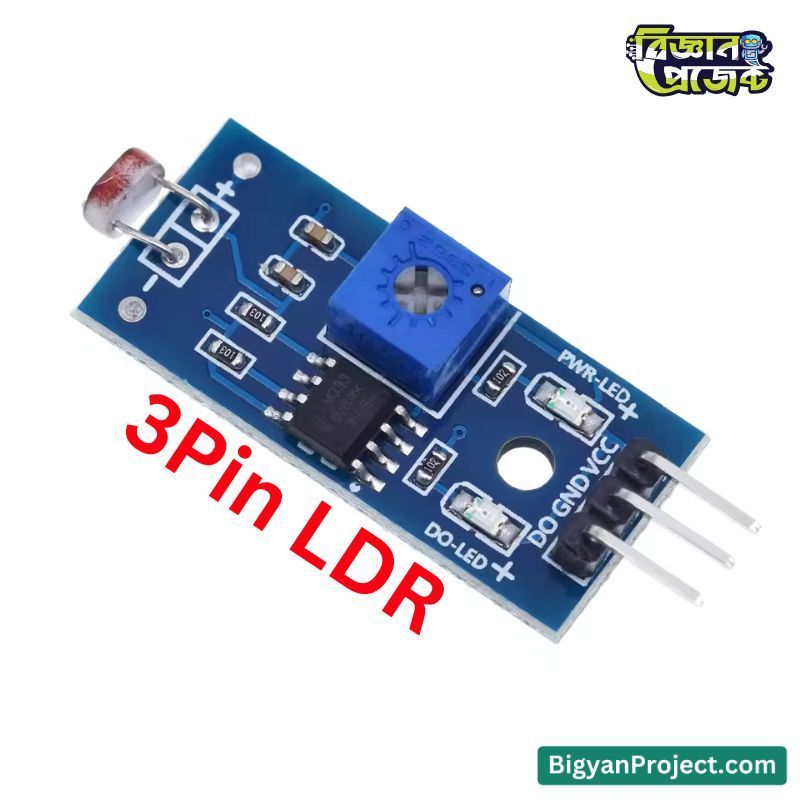

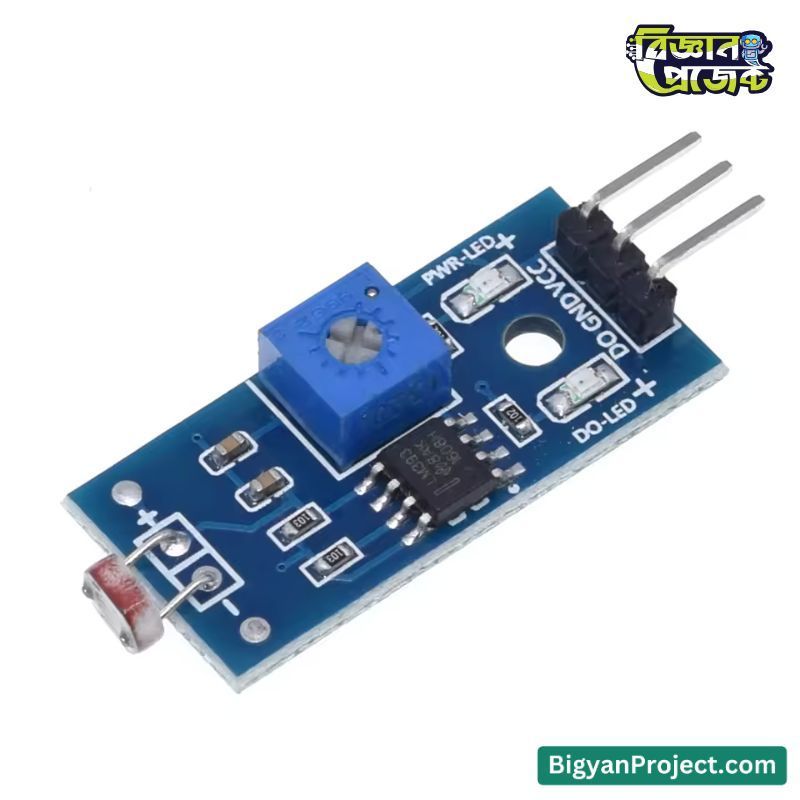

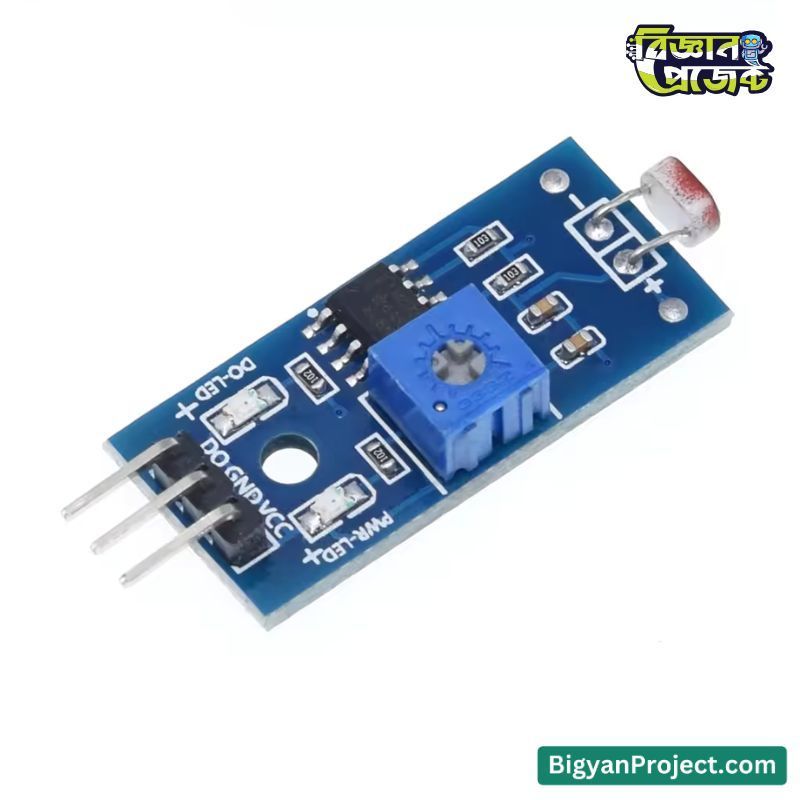

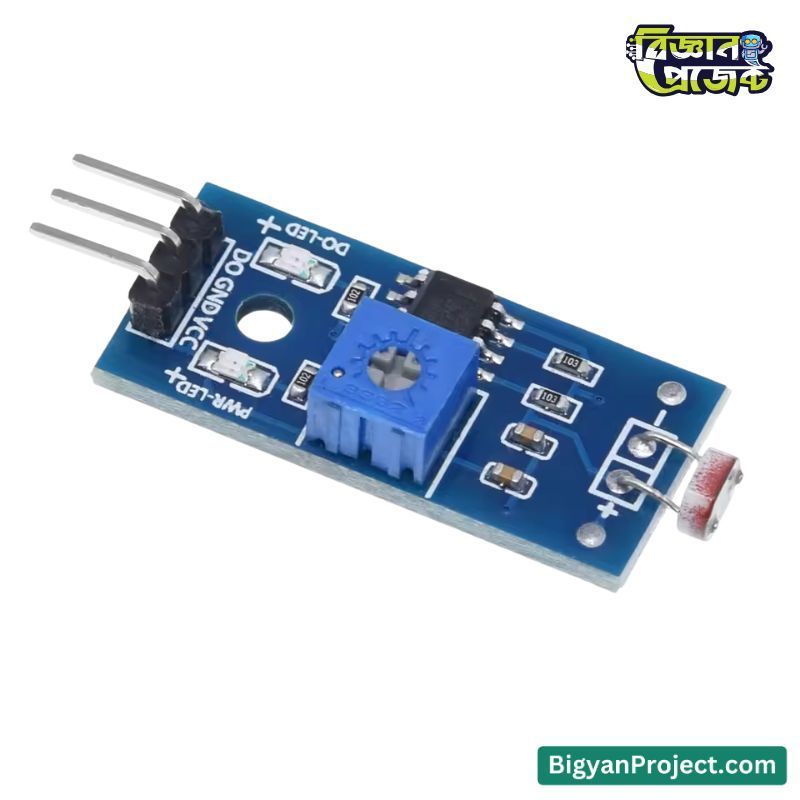

The 5mm LDR Photoresistor 3 Pin LM393 Light Sensor Module is a compact and reliable light detection solution for DIY electronics, home automation, robotics, and academic projects. Designed with a 3-pin interface (VCC, GND, DO), it offers easy integration with microcontrollers like Arduino, ESP32, Raspberry Pi, and other development boards. Bigyan Project brings this high-quality sensor module to help makers, students, and engineers build smart light-controlled systems with precision and simplicity.

Product Specifications

Features

• 5mm LDR ensures precise light sensitivity
• Integrated LM393 comparator for stable signal processing
• 3-pin interface (VCC, GND, DO) for easy wiring
• Digital output simplifies light detection thresholds
• Wide operating voltage range (3.3V–5V) for compatibility
• High-temperature resistance up to 105℃ for robust environments
• Compact design fits easily on breadboards and PCBs

Applications / Use Cases

• Automatic street lighting systems
• Smart home lighting control
• Solar tracking systems
• Robotics light-following or avoiding mechanisms
• Classroom and academic electronics projects
• DIY energy-saving systems
• Photography and film light triggers

User Guide / How to Use

Using the 5mm LDR 3 Pin LM393 Light Sensor Module is straightforward. Connect the VCC pin to a 3.3V or 5V power source, GND to ground, and DO (digital output) to your microcontroller's input pin. Adjust the onboard potentiometer to set the desired light sensitivity threshold. When ambient light crosses this threshold, the module outputs a HIGH or LOW signal. This can be read by Arduino or other controllers to trigger lights, alarms, or other automation systems. Bigyan Project recommends testing on a breadboard first to fine-tune the sensitivity before final installation.

Frequently Asked Questions (FAQs)

• What is the main use of this sensor module? It is used for detecting ambient light levels to automate lighting or trigger electronic responses based on brightness.
• Is it compatible with Arduino and ESP32? Yes, the module works seamlessly with Arduino, ESP32, Raspberry Pi, and other microcontrollers.
• Can I adjust the sensitivity? Yes, an onboard potentiometer allows you to set the light threshold easily.
• Does it provide analog output? This specific module provides digital output (HIGH/LOW) via DO pin.
• What voltage does it require? It operates between 3.3V and 5V, making it flexible for different platforms.

Challenges and Considerations

• Ensure proper calibration of the sensitivity potentiometer for your environment
• External light sources may cause false triggers if not shielded properly
• Digital output only; if you need analog light level readings, consider using a raw LDR with ADC
• Protect the sensor from moisture or dirt to maintain accuracy

Compatibility

• Arduino Uno, Nano, Mega
• ESP8266 and ESP32 boards
• Raspberry Pi with GPIO input
• Other 3.3V and 5V microcontroller platforms
• Compatible with breadboards and custom PCBs

Future Enhancement Options

• Integrate with IoT systems for remote light monitoring
• Add wireless control via Wi-Fi or Bluetooth
• Combine with relay modules for automated lighting circuits
• Use with multiple sensors for zoned light detection

Benefits

• Simple and reliable light detection solution
• Cost-effective for students, hobbyists, and professionals
• Easy to integrate with popular development boards
• Adjustable sensitivity for tailored applications
• Supported by Bigyan Project with local availability and guidance

Conclusion

The 5mm LDR 3 Pin LM393 Light Sensor Module is an essential component for anyone looking to automate lighting, build smart projects, or experiment with light detection in electronics. With its stable LM393 comparator, adjustable sensitivity, and broad compatibility, it offers exceptional value and ease of use. Bigyan Project is proud to offer this quality module to support makers, students, and professionals in bringing their creative ideas to life.
