Arduino 360deg Ultrasonic Radar Science Project

Complete 360deg Arduino Ultrasonic Radar Project Kit for Students

Explore the exciting field of robotics and object detection with this all-in-one DIY Arduino 360-degree Ultrasonic Radar Project. This kit is a complete package designed for students, hobbyists, and anyone passionate about STEM. It provides a hands-on learning experience in electronics, programming, and data visualization. The system is powered by the popular Arduino Uno R3 board. It uses two HC-SR04 ultrasonic sensors mounted on a rotating MG90s servo motor to achieve a full 360-degree scan of its surroundings. The most exciting part? You can visualize this data in real-time as a radar screen on your laptop using the free Processing app. This isn't just a kit; it's a gateway to understanding advanced concepts like obstacle avoidance, room mapping, and sensor technology. We at Bigyan Project (বিজ্ঞান প্রজেক্ট) have curated this kit specifically for curious minds and aspiring innovators.

Product Specifications

Features

• Provides a complete 360-degree environmental scan by combining two sensors.
• Real-time object detection and mapping displayed on a user-friendly radar interface.
• Powered by the versatile and beginner-friendly Arduino Uno R3 platform.
• Includes a reliable MG90s servo motor with semi-metal gears for smooth and stable rotation.
• An all-in-one kit, perfect for a complete science fair project or a hands-on learning module.
• Easy to assemble using included jumper wires and glue stick body structure, making it great for prototyping.

Applications / Use Cases

• Ideal for school, college, and university science fair projects.
• A foundational project for learning robotic obstacle avoidance systems.
• Can be adapted for simple indoor room mapping or security alerts.
• An excellent tool for STEM education workshops and teaching sensor integration.
• Serves as a base for building more complex autonomous vehicle (AGV) prototypes.

User Guide / How to Use

Getting your Arduino 360deg Radar up and running is a rewarding process.

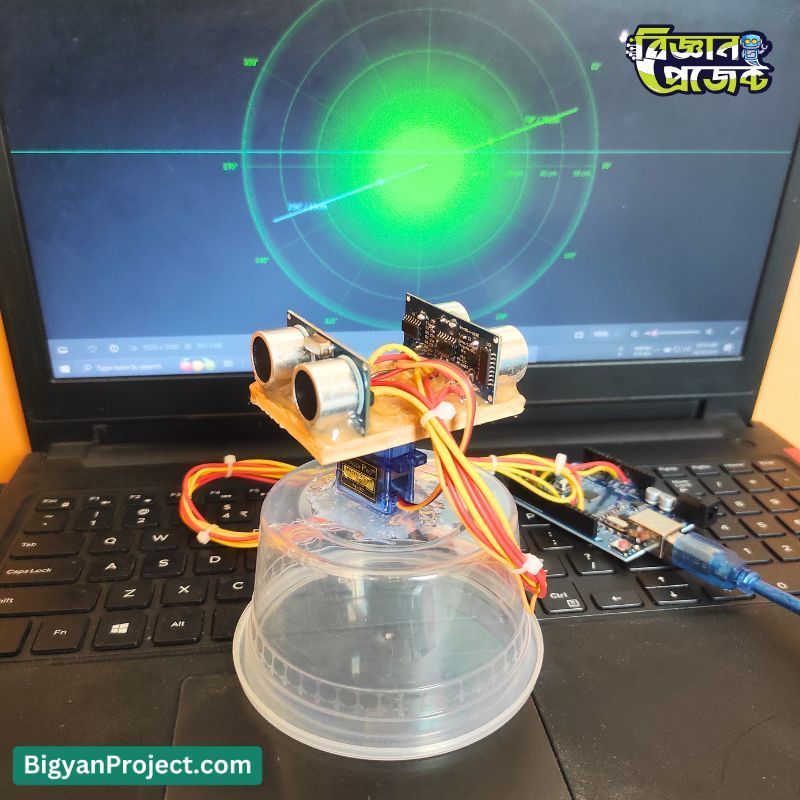

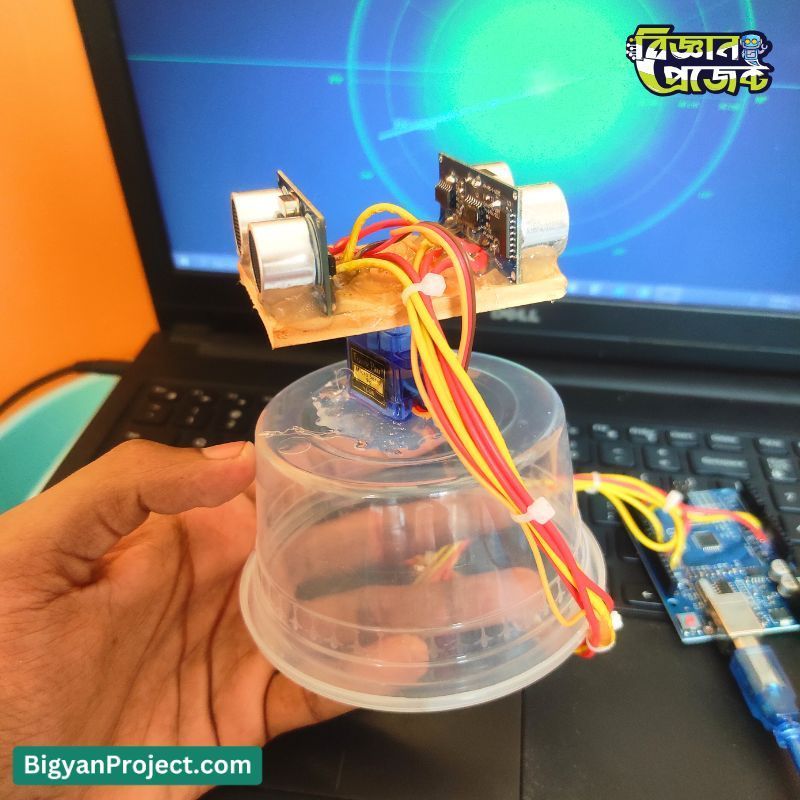

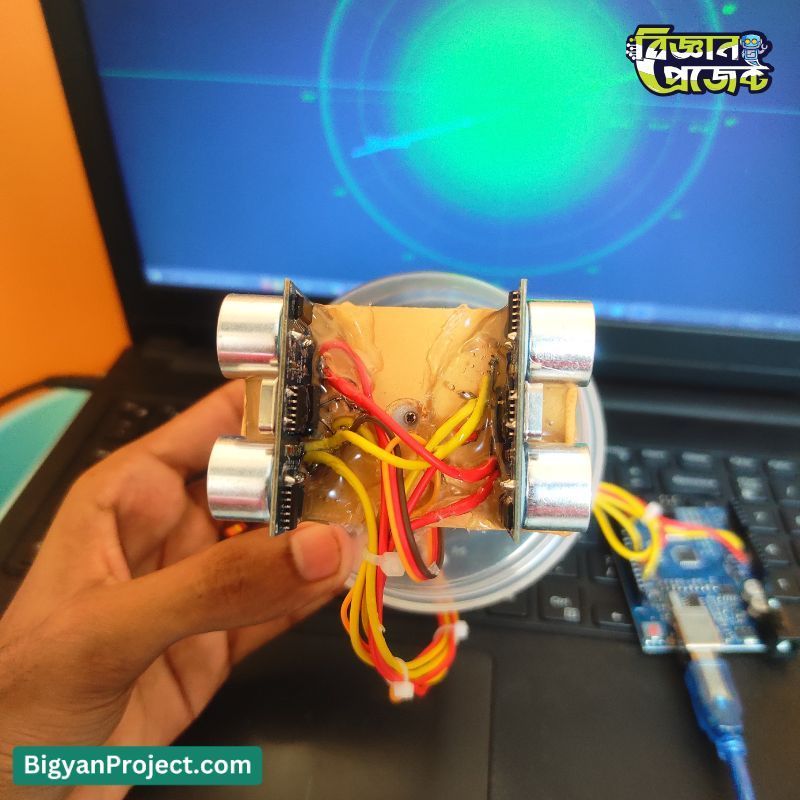

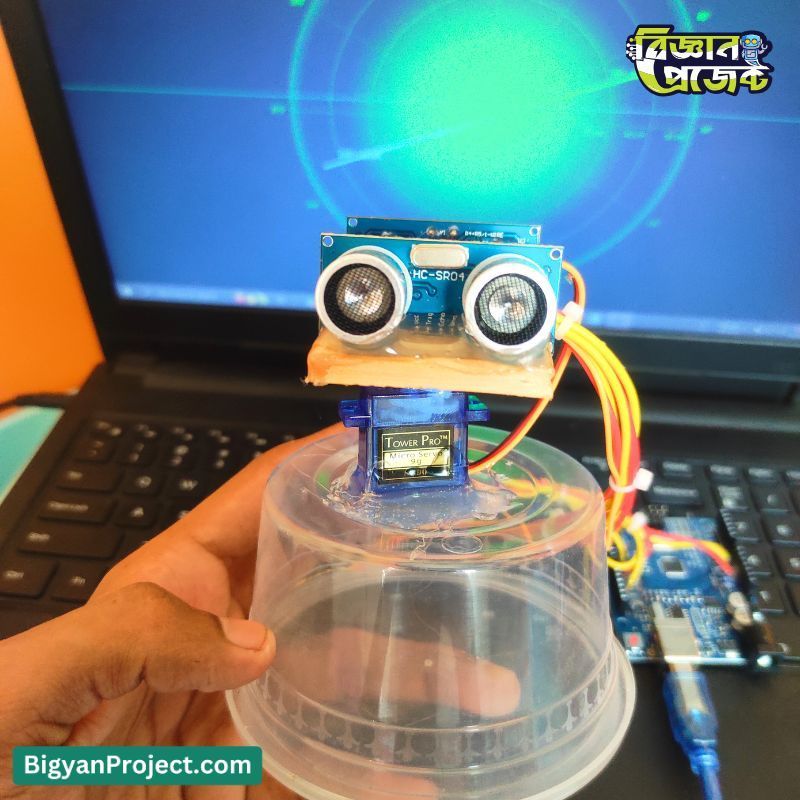

1. Assembly: First, construct the physical radar stand using the hot melt glue sticks to create a base and a tower for the servo. Mount the MG90s servo on top. Attach the two HC-SR04 sensors to the servo, typically back-to-back or angled, to cover the full 360-degree view within the servo's 180-degree sweep.

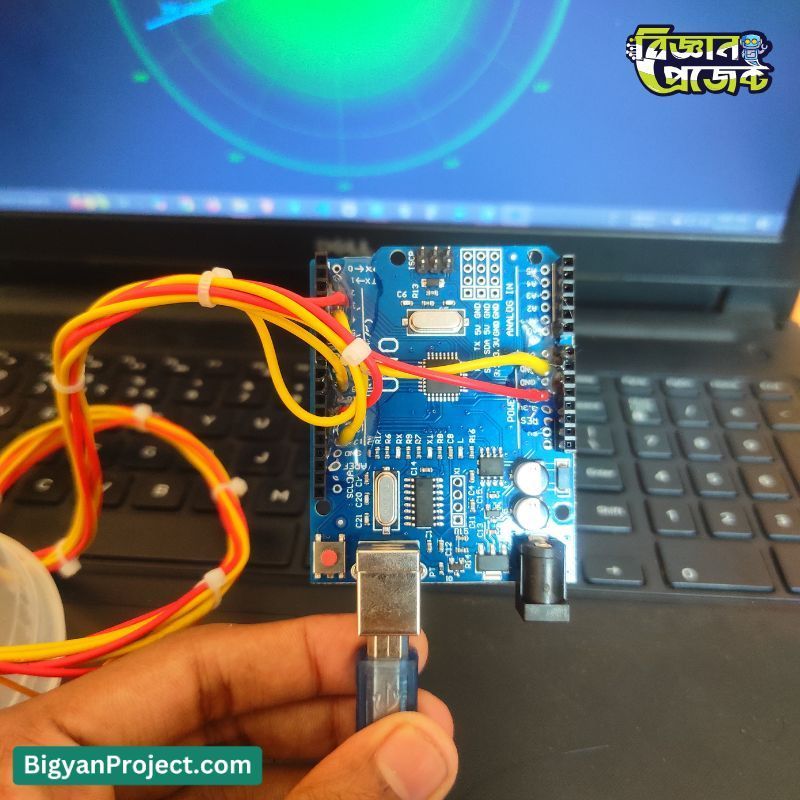

2. Wiring: Connect the servo and both ultrasonic sensors to the Arduino Uno R3 board using the provided male-female jumper wires. Follow a standard pinout diagram for power (5V, GND), servo signal, and sensor (Trig, Echo) pins.
3. Programming: Connect the Arduino to your PC. Open the Arduino IDE, load the provided radar sensor code, and upload it to your board.

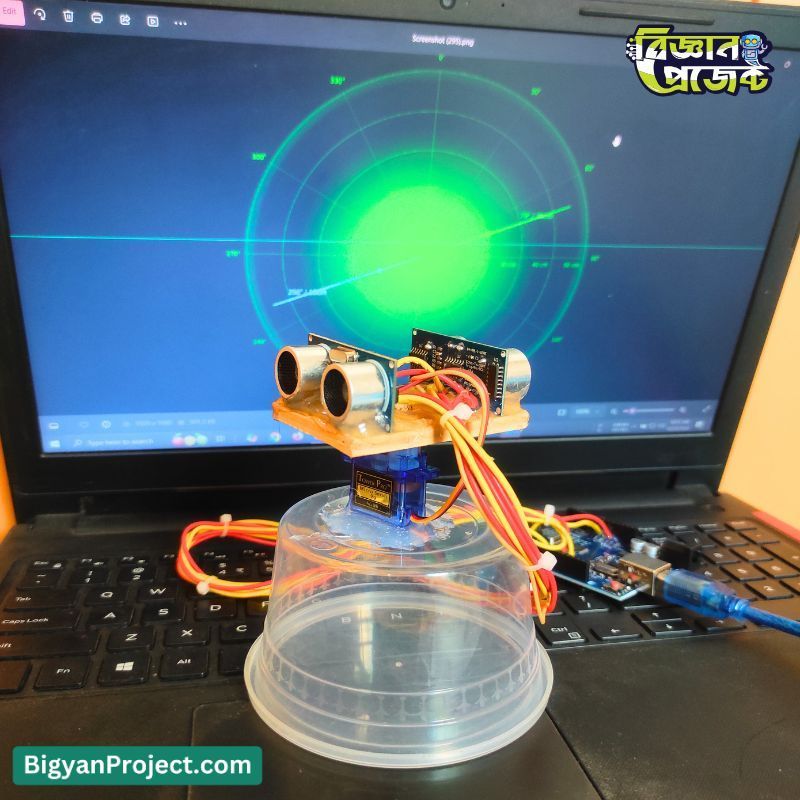

4. Visualization: Open the Processing app on your laptop. Run the corresponding radar visualization code. The app will connect to the Arduino via the serial port and begin drawing the radar display on your screen, showing detected objects as pings.

Frequently Asked Questions (FAQs)

• Q: Do I need programming knowledge to build this?
  A: Basic knowledge of Arduino (C++) and Processing (Java-based) is helpful. However, this kit is a great way to learn, and the provided code will get you started immediately.
• Q: What is the maximum detection range of this radar?
  A: Each HC-SR04 sensor has a theoretical range of 2cm to 400cm. For best results and a clear radar display, it performs reliably within a 2-3 meter radius.
• Q: Why does it use two sensors if the servo only moves 180 degrees?
  A: This is a clever design. The 180-degree servo sweeps back and forth. By mounting two sensors (e.g., one facing forward, one backward), the 180-degree sweep of the servo allows the two sensors to scan the complete 360-degree area (180 deg + 180 deg).
• Q: Is the Processing app free?
  A: Yes, Processing is a free, open-source software platform available for Windows, macOS, and Linux.
• Q: Is this a complete kit?
  A: Yes, this kit from Bigyan Project includes all the essential electronic components and wires listed in the specifications. You will need a computer, a glue gun, and the free Arduino/Processing software.

Challenges and Considerations

• The accuracy of the HC-SR04 sensor can be affected by soft, sound-absorbing surfaces (like curtains), very small objects, or sharp angles.
• The refresh rate of the radar display is dependent on the servo motor's sweep speed and the speed of sound.
• This project requires a laptop or PC connection at all times to visualize the data via the Processing app.
• The included glue sticks are for building a simple prototype body. For long-term use, you might consider a 3D-printed or custom-made acrylic base.

Compatibility

• Controller: Fully compatible with any standard Arduino Uno, Arduino Mega, or Arduino Nano board.
• Software: Requires the Arduino IDE (Version 1.8 or higher) and the Processing IDE (Version 3 or 4).
• Operating System: The visualization software works on Windows, macOS, and Linux.

Future Enhancement Options

• Add an LCD or OLED screen to the Arduino to create a portable, standalone radar display without a laptop.
• Integrate a buzzer or LED to provide an audible or visual alert when an object enters a "danger zone."
• Upgrade the sensors to more precise models like LiDAR (Light Detection and Ranging) for higher resolution.
• Implement wireless communication (using an ESP8266 or Bluetooth module) to send radar data to a web dashboard or mobile app.

Benefits

• Gain practical, hands-on experience with ultrasonic sensors, servo motors, and Arduino programming.
• Develop valuable skills in real-time data visualization and interfacing hardware with software.
• A complete, all-in-one kit from Bigyan Project saves you the time and hassle of sourcing individual components.
• An affordable entry point into the fascinating world of robotics, environment sensing, and automation.
• Creates an impressive and functional project that is highly effective for demonstrations and science fairs.

Conclusion

This Arduino 360deg Ultrasonic Radar Project is far more than just a set of components; it's a complete, project-based learning experience. It perfectly bridges the gap between abstract coding theory and tangible, real-world applications. Whether you are a student preparing for a science fair, a hobbyist looking for your next challenge, or a teacher in search of an engaging STEM activity, this kit is your perfect starting point. Get your complete DIY radar project kit from Bigyan Project (বিজ্ঞান প্রজেক্ট) today and start scanning your world!
